Product Description
Overview
The small and medium-sized test equipment is made of stainless steel and can be designed for normal, reduced and pressurized use. The tower kettle can be designed with electric heating, thermal oil, steam and other heating methods. The specifications of the tower sections can be customized, and each tower section can be equipped with a feed port/temperature measurement port. In order  to avoid heat loss during the operation of the tower, modern intelligent instruments are used to set the temperature of the tower to provide heat compensation, so that the experimental process can be closer to the ideal state to a greater extent and achieve better experimental results.
Features
● High separation efficiency and wide application range
● The structure of the tower is simplified, which is suitable for the separation of small and valuable materials
● Accurate control of reflux ratio, which is conducive to the  exploration of experimental adjustment
● Precise temperature control, more conducive to the adjustment of experimental conditions
● Batch or continuous distillation
● During the development of the device, computer simulation was introduced to make the operation of the distillation experiment more intelligent
Typical Applications
Fine chemicals, biopharmaceuticals, food and agriculture, new materials, petrochemicals, fragrances and flavors, etc.
1

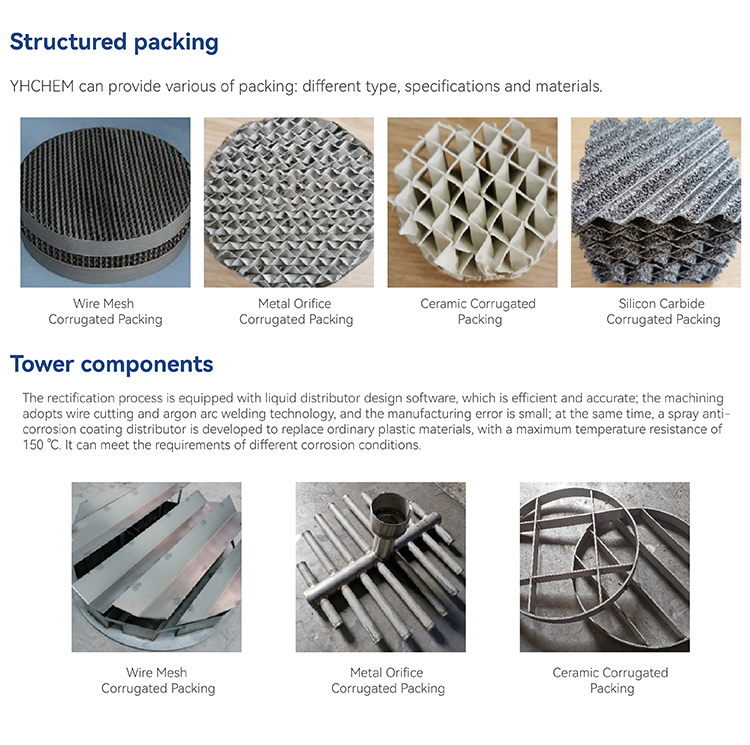

1 (13).jpg
Product Parameter
Model YFT-5S YFT-10S YFT-20S YFT-50S YFT-100S
Tank volume (L) 5 10 20 50 100
Tower height (m) 2 2 2 2 2
Condensing area (m²) 0.25 0.4 0.65 1.15 1.75
Reflux ratio control Yes
Temp pressure display Yes
Continuous sampling Yes
Working temperature range (℃) -20-200 ℃
